JUAL 4-20mA on-line Infrared Thermometer Sensor Modbus Protocol Temperature

JUAL 4-20mA on-line Infrared Thermometer Sensor Modbus Protocol Temperature
https://1.bp.blogspot.com/-O4_7vIeIM30/X444tCyxN8I/AAAAAAAAFEI/H4vJKrGD3pMlsq2G8Dr3goTKsORFjka6ACLcBGAsYHQ/s72-c/4-20mA%2Bon-line%2BInfrared%2BThermometer%2BSensor%2BModbus%2BProtocol%2BTemperature.jpg

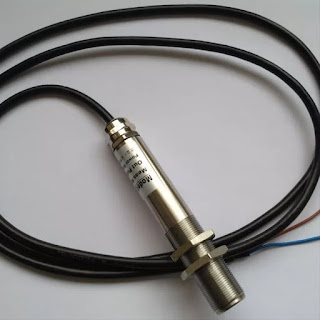

  •  4-20mA on-line Infrared Thermometer Sensor Modbus Protocol Temperature

  • Infrared thermometer
  • The infrared thermometer can calculate the surface temperature of the object by measuring the intensity of infrared radiation emitted by the target without touching it. Non-contact temperature measurement is the biggest advantage of infrared thermometer, which makes it easy for users to quickly measure objects that are difficult to approach or objects on the move.

  • Optical resolution
  • The optical resolution is 20:1, and the corresponding spot size can be calculated approximately by the ratio of distance to spot size of 20:1.
  • Basic performance
  • Protection           IP65(NEMA-4)
  • The environment temperature     0~60℃
  • Storage temperature      -20~80℃
  •  relative humidity      10~95%(Non-condensate)
  • Material is stainless steel
  • Size 98 mm x 18 mm (length x  diameter)
  • Cable length  1m(standard),  。also could custom made be 3m,15m  special specifications (custom)
  • electrical parameters
  • Work        24VDC
  • Maximum current           50mA
  • output signal          4-20mA
  • measurement parameters
  • Spectral range       8~14um
  • Temperature range     0~500℃
  • Optical resolution      20:1
  • Response time   300ms(95%)
  • emissivity    0.95 Fixed
  • measured value 2% plus or minus  ±2% or 2% plus or minus  ±2.0℃,
  • take the maximum(ring temperature: 23 ℃ +- 5 ℃)
  • Repeat precision measurements o ±1% or ±1℃,
  •  take the maximum (ring temperature: 23 ℃ +- 5 ℃)
  • Power Supply  4 x 1.5 AAA Size (UM-4) Battery
