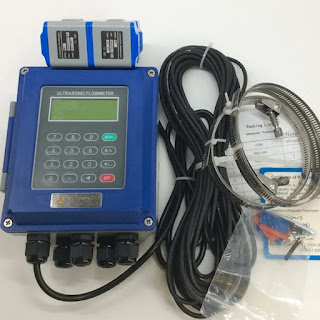

TUF-2000B TL-1 Ultrasonic flowmeter Transducer DN300-6000mm
wall mounted type TUF-2000B Ultrasonic Liquid flowmeter with Transducer TL-1 DN300mm-DN6000mm

Introduction of Ultrasonic flow meter:
TUF-2000B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water,plant.etc

Performance and Parameter:
Principle Transit-time ultrasonic flowmeter
Accuracy ±1%
Display 2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish

Signal output
1way 4-20mA output, electric resistance 0-1K, accuracy0.1%
1 way OCT pulse output(Pulse width-1000ms, default is 200ms))
1 way Relay output

Signal input
3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid level. Connect the temperature transducer P100, can finish the heat/energy measurement.

Data Interface: Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS.
Special Cable :Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m
Pipe material: Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed
Pipe diameter 300-6000mm

Type of liquid
Single liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, diesel oil, fuel oil, etc); chemical; plant effluent; beverage; Ultra-pure liquids, etc

TOKO MARGA SETIA SURVEY
Berdagang alat- alat Kelautan, Alat Selam, Perahu Karet,Alat Keselamatan,
GPS Garmin, GPS Magellan, Alat Survey, Alat Ukur dan Aksesoris Alat Ukur.
Current Meter.Anemometer ,Anemometer Wireless,Weather station
Untuk keterangan, nego harga dan informasi produk lainnya, hubungi :
Name       : tatang survey
Alamat     : Jl .H.Kelik No.20 RT.03 / RW.08 Kelapa Dua Kebon Jeruk Jakarta Barat
Email      : tatangms409@gmail.com
Telp       : 082124100046 / 083892207786
WhatsApp   :082124100046
Fax : (021)22054159
Web        : www.margasetiaonleneshoop.com
             www.nandarsurvey.com
             www.distributorsirinejakarta.com
